Product description: RS-Tire Lift 2T

(Protected by "DPMA Aktenzeichen 40 2011 000 993.5" / Protected throughout the EU internal market through the (OHIM) / Alicante (Spain) on 16th August 2011 under the roll number 001 904 996)

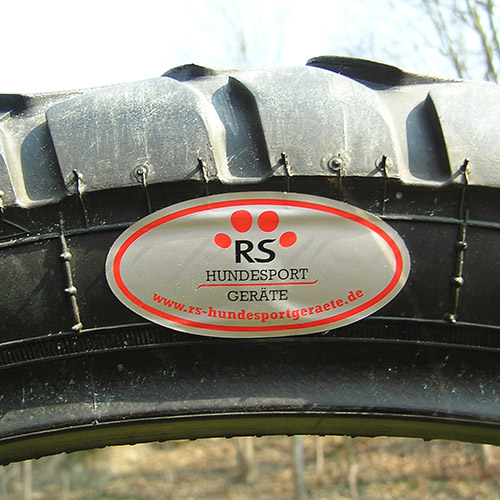

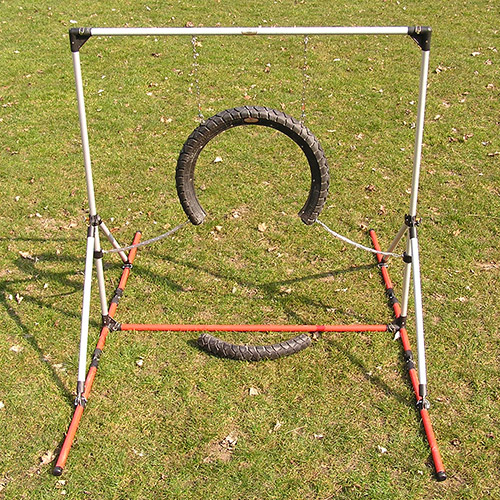

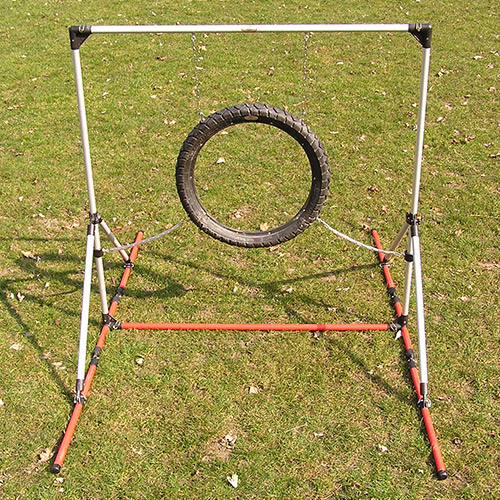

RS-Tire Lift 2T Closed RS-Tire Lift 2T Opened RS-Tire Lift 2T

Functionality



The RS-Tire Lift basically corresponds to the characteristics of the Running-Safe Reifen!

The RS-Tire Lift is designed to adjust the height of the tire without needing sophisticated technical means, such as installing an additional frame for height adjustment in the existing framework.

Construction



The RS-Tire Lift is hooked up instead of using eyelets, with hooks into the chains, which are attached to the framework. The mounting parts on the tire rack must have a central distance of 465mm to guarantee a proper height adjustment of the tire.



The height can be adjusted as described below:

  • Loosen the chains on both sides of the tire from the rack (HINT: For the RS-Rack this is not necessary, since the fixtures automatically adjust!)
  • Slightly elevate the tire hanging in the frame
  • Unhinge the two chains
  • Lift the tire tot he preferred height
  • Hang back the chains into the hook
  • Attach the chains on both sides tot he frame again (HINT: For the RS-Rack this is not necessary, since the fixtures automatically adjust!)
  • Done!!!

For the standard used heights of the tire we recommend to color the chain links as this makes adjusting the height significantly easier.

The top two chains are using a counterweight and slide through an opening in the tire directly next to the hook into the interior of the tire during the lifting or vice versa when pulled out when lowering  the tire.

The adjustment is very simple, because  the chains do not automatically engage in the hook by themselves when adjusting the height which also makes pinching of fingers – if handled properly – nearly impossible.

If a dog jumps diagonally in the tire at the right pressure this will also loosen the chains held by magnets. In order to minimize the risk of injury at this point, the chains are surrounded by a transparent tube.

Should the opening of the upper part deform by such a situation as described above, the tire can easily be pushed back into its original shape. This can easily be done without the use of tools and considerable effort due to the incorporated stabilizers.



Usage

The Running-Safe Reifen Lift is generally built in the RS-Rack and can be built into many other frameworks and is therefore most suitable for retrofitting. The mandatory purchase of a complete frame with tire is therefore not necessary for most of the currently used frameworks. Just the height adjustment of the chains on both sides has to be fitted to the frame individually.

The chains to which the tire is mounted, are supposed to be used for a framework with the size of 1600mm width and 1500mm height and must be interpreted (when retrofitting) adjusted by the customer laterally if necessary.





Free Service

For solving technical issues, please contact us. We are happy to assist you
